Description

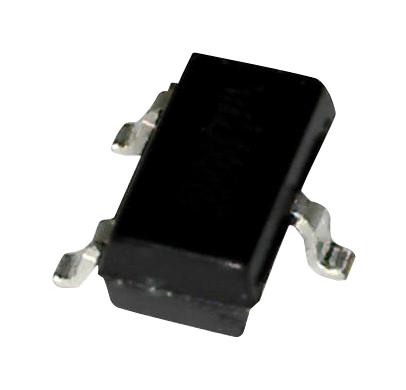

DIODES INC. - 2N7002K-7 - Power MOSFET, N Channel, 60 V, 300 mA, 2 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 300mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 2ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.6V
- Power Dissipation Pd: 350mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Current Id Max: 800mA
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Enhancement
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
