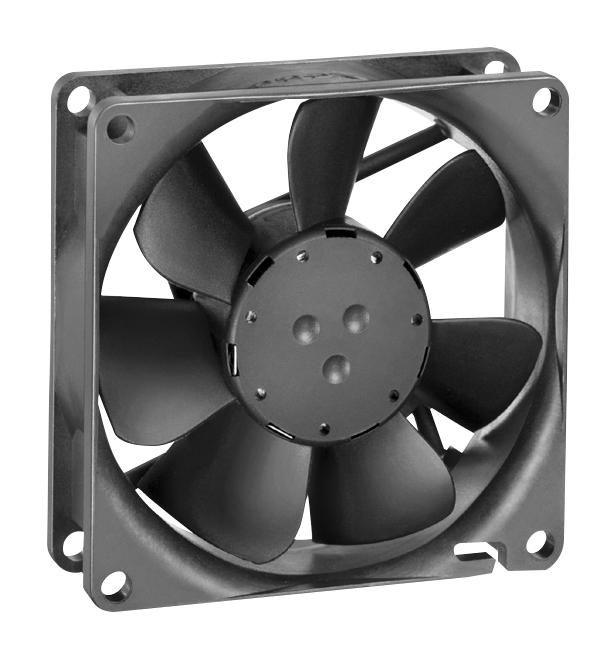

EBM-PAPST - 8414N/2GH - DC Axial Fan, 24 V, Square, 80 mm, 25 mm, Sleeve Bearing, 46.5 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 80mm
- External Depth: 25mm
- Noise Rating: 37dBA
- Flow Rate - Imperial: 46.5cu.ft/min
- Flow Rate - Metric: 79m³/h
- Bearing Type: Sleeve
- Power Connection Type: 3 Lead Wires, Sensor Output
- Current Rating: -
- Product Range: 8400N Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL, VDE
- External Height: 80mm
- External Width: 80mm
- Fixing Centres: 71.5mm
- Fixing Hole Diameter: 4.5mm
- Frame Dimensions: 80mm x 80mm x 25mm
- Input Voltage Max: 26V
- Input Voltage Min: 18V
- Lead Length: 310mm
- Panel Cutout Diameter: 77mm
- Power Consumption: 2.2W
- Supply Voltage DC Max: 26V
- Supply Voltage DC Min: 18V
- Type: Standard,80mm
