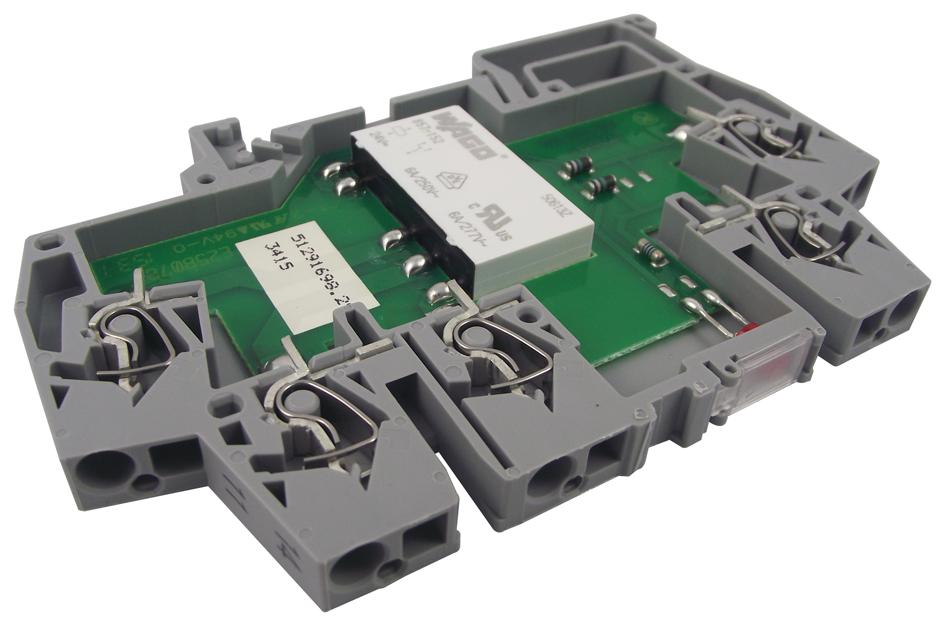

WAGO - 859-304 - DIN Rail Mount Terminal Block, With Switching Relay, 5 Ways, 28 AWG, 14 AWG, 2.5 mm², Clamp, 5 A
- No. of Positions: 5Ways
- Wire Size AWG Min: 28AWG
- Wire Size AWG Max: 14AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Clamp
- Rated Current: 5A
- Rated Voltage: 250V
- No. of Levels: 2
- Product Range: 859 Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: GL, UL
- Coil Voltage: 24VDC
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- Contact Configuration: SPST
- Contact Current: 5A
- Contact Material: Silver Tin Oxide
- Contact Voltage VAC: 250V
- External Depth: 56mm
- External Length / Height: 91mm
- External Width: 6mm
- No. of Contacts: 1Contacts
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Pitch Spacing: 6mm
- Relay Mounting: DIN Rail
