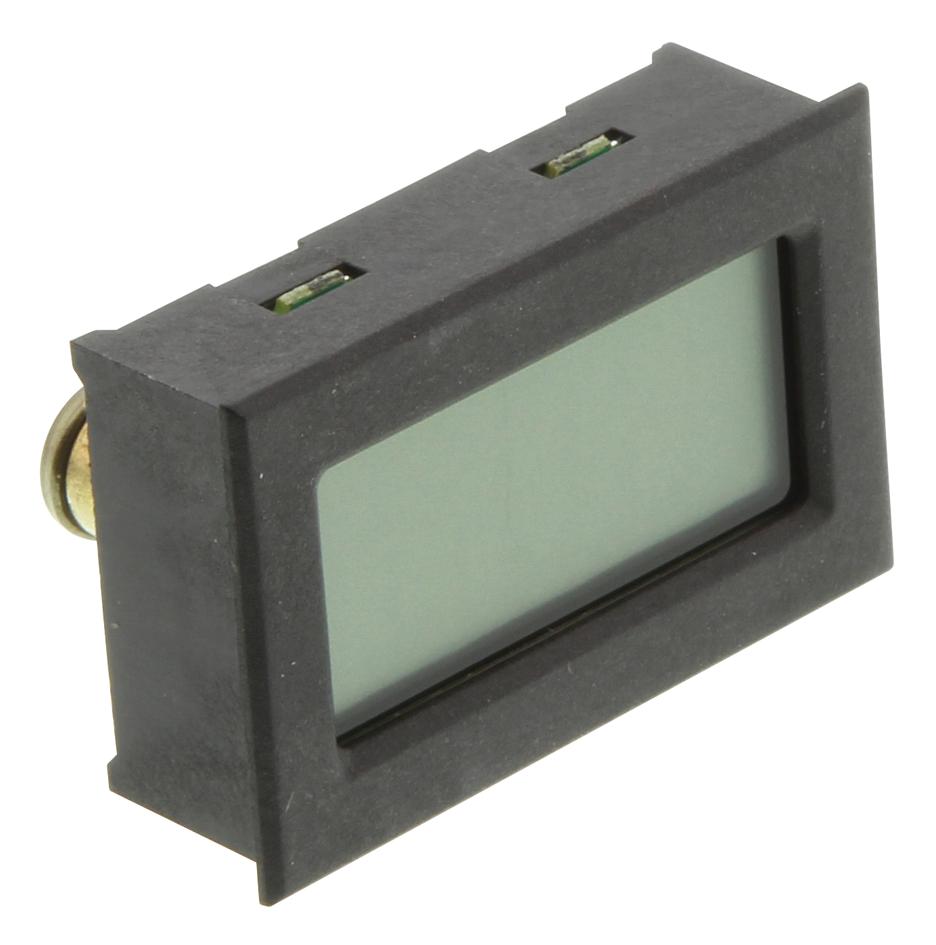

MURATA POWER SOLUTIONS - DMS-20LCD-0-DCM-C - Voltmeter, DMS-20LCD Series, DC Voltage, 6.5V to 18V, 3.5 Digits, 6.5 Vdc to 18 Vdc
- No. of Digits / Alpha: 3-1/2
- Meter Function: DC Voltage
- Meter Range: 6.5V to 18V
- Digit Height: 9.4mm
- Panel Cutout Height: 21.29mm
- Panel Cutout Width: 33.93mm
- Supply Voltage Min: -
- Supply Voltage Max: -
- Operating Temperature Min: 0°C
- Operating Temperature Max: 60°C
- Product Range: DMS-20LCD-0/1 Series
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: ± 0.01V
- Bezel Height: 22mm
- Bezel Width: 35mm
- Display Area Width: 35mm
- Display Size: 35.1mm x 22.4mm
- Display Technology: LCD
- External Depth: 17mm
- External Length / Height: 20mm
- External Width: 33mm
- Height: 20mm
- Leakage Current: 3mA
- Operating Temperature Range: 0°C to +60°C
- Resolution: 0.1V
