Description

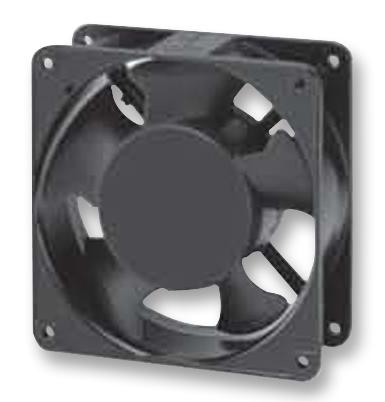

SUNON - DP203A 2123LBL.GN - AC Axial Fan, 220V to 240V, Square, 120 mm, 38 mm, Ball Bearing, 78 CFM
- Supply Voltage: 230V
- Current Type: AC
- Fan Frame Size: 120mm
- External Depth: 38mm
- Noise Rating: 39dBA
- Flow Rate - Imperial: 78cu.ft/min
- Flow Rate - Metric: 2.21m³/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 50mA
- Product Range: DP Series
- Power Rating: 10W
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Frame Dimensions: 120mm x 120mm x 38mm
- Frequency Max: 60Hz
- Frequency Min: 50Hz
- Speed Range Max: 2300rpm
