Description

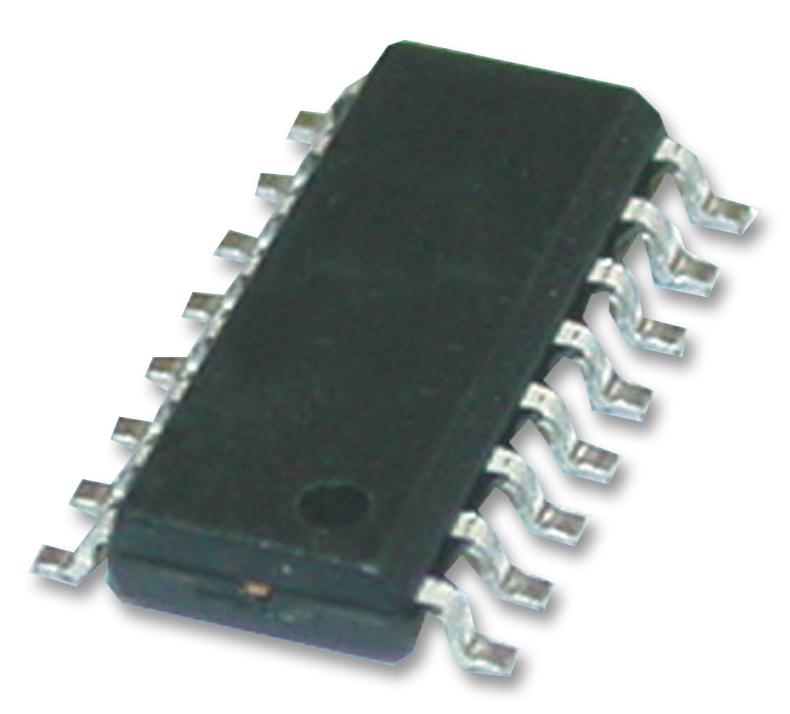

NEXPERIA - HEF4060BT,653 - Binary Ripple Counter, 30 MHz, 1 Gate, 1 Input, 4.5 V to 15.5 V, SOIC-16
- Logic Family / Base Number: HEF4060
- Counter Type: Binary
- Clock Frequency: 30MHz
- Count Maximum: 14
- Logic Case Style: SOIC
- No. of Pins: 16Pins
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 15.5V
- Logic IC Family: HEF4000
- Logic IC Base Number: 4060
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 4060
- Logic Function Number: 4060
- Logic IC Base Number: 4060
- Logic IC Function: 14-Stage Binary Ripple Counter With Oscillator
- No. of Gates: 1
- No. of Inputs: 1
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage: 15V
- Supply Voltage Range: 4.5V to 15.5V
- Termination Type: Surface Mount Device
