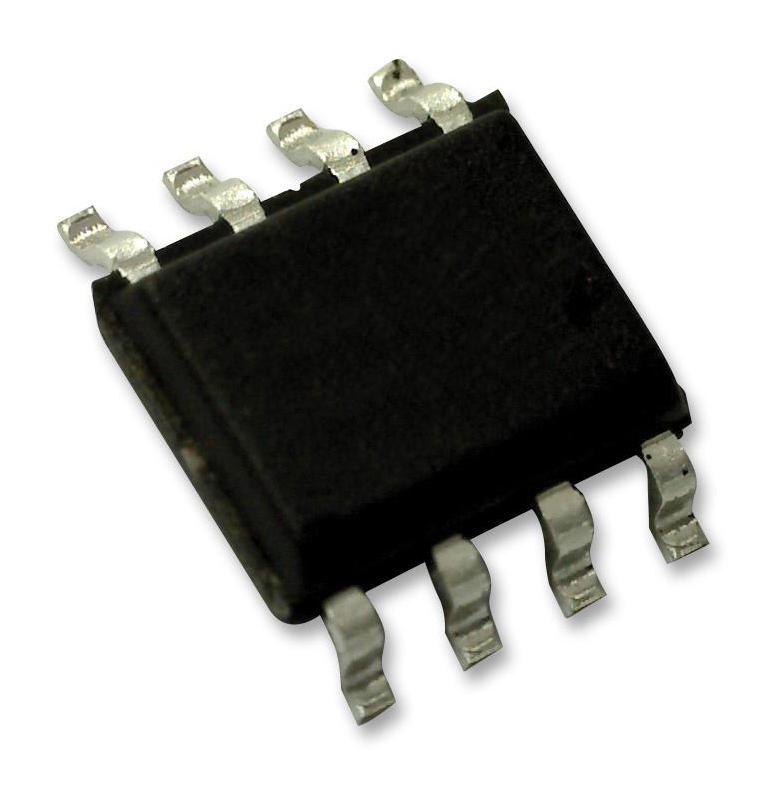

IR2104SPBF Ic, MOSFET Driver, High/Low Side, SOIC-8 INFINEON

INFINEONSKU: IR2104SPBF Order code: 8638756

Price:
Sale price€3,92

Tax included Shipping calculated at checkout

Stock:
In stock (3015 units), ready to be shipped

Documents et téléchargements

Description

INFINEON - IR2104SPBF - Dual MOSFET IC, High Side And Low Side, 10V-20V Supply, 360mA Out, 150ns Delay, SOIC-8

  • Driver Configuration: High Side and Low Side
  • Peak Output Current: 360mA
  • Supply Voltage Min: 10V
  • Supply Voltage Max: 20V
  • Driver Case Style: SOIC
  • No. of Pins: 8Pins
  • Input Delay: 680ns
  • Output Delay: 150ns
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 2 - 1 year
  • SVHC: No SVHC (27-Jun-2018)
  • Base Number: 2104
  • Device Type: MOSFET Driver
  • Logic Function Number: 2104
  • Module Configuration: Half Bridge
  • No. of Outputs: 2Outputs
  • Offset Voltage: 600V
  • Operating Temperature Range: -55°C to +150°C
  • Output Current: 210mA
  • Output Sink Current Min: 270mA
  • Output Source Current Min: 130mA
  • Output Voltage: 620V
  • Power Dissipation Pd: 0.625W
  • Supply Voltage Range: 10V to 20V
  • Termination Type: Surface Mount Device
