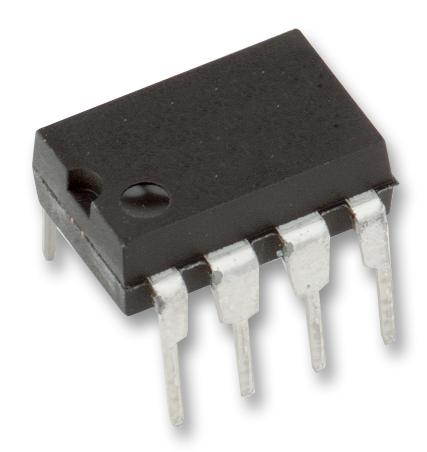

INFINEON - IRS2153DPBF - Dual MOSFET Driver, Half Bridge Self-OSC, 10.1V-16.8V Supply, 0.26A Out, 350ns Delay, DIP-8
- Driver Configuration: High Side
- Peak Output Current: 260mA
- Supply Voltage Min: 10.1V
- Supply Voltage Max: 16.8V
- Driver Case Style: DIP
- No. of Pins: 8Pins
- Input Delay: -
- Output Delay: 350ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 2153
- Device Type: MOSFET Driver
- Module Configuration: High Side
- No. of Outputs: 2Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Current: 180mA
- Output Current Max: 0.18A
- Output Voltage: 625.3V
- Output Voltage Max: 625V
- Supply Voltage Range: 10.1V to 16.8V
- Termination Type: Through Hole
