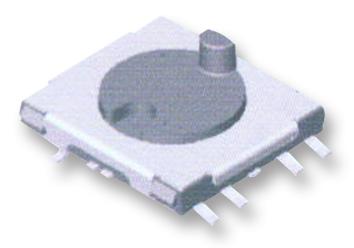

MULTICOMP PRO - MCSRM-8R8G - Rotary Switch, 8 Position, 8 Pole, 45 °, MCSRM
- No. of Switch Positions: 8 Position
- No. of Poles: 8 Pole
- Angle of Throw: 45°
- Contact Current AC Max: -
- Contact Voltage AC Max: -
- Product Range: MCSRM Series
- Illumination: Non Illuminated
- Contact Current DC Max: 25mA
- Contact Voltage DC Max: 24V
- SVHC: No SVHC (15-Jan-2019)
- Angle: 45°
- Colour: Brown
- Contact Current Rating: 10mA
- Contact Resistance: 200mohm
- External Depth: 11mm
- External Length / Height: 2mm
- External Width: 11.5mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 10000
- Operating Force: 0.39N
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Proof Voltage: 300VAC
- Switching Current DC Max: 10mA
