Description

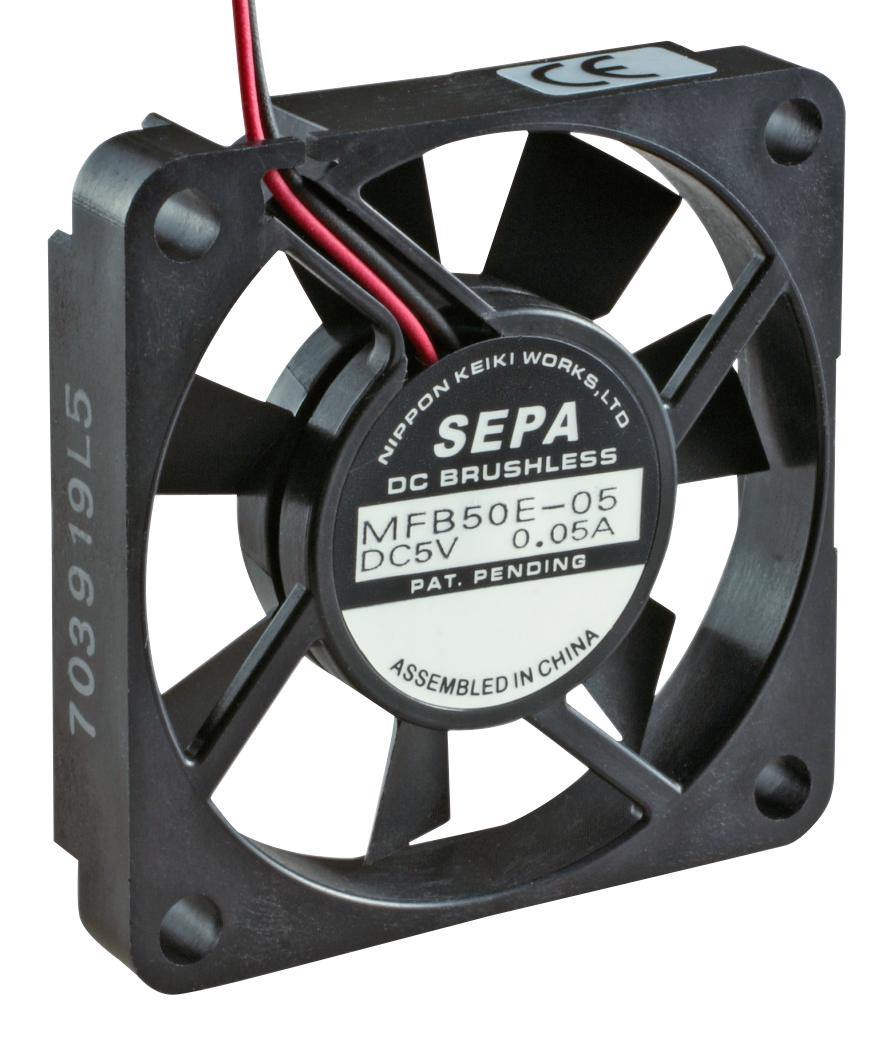

SEPA - MFB50E05 - DC Axial Fan, 5 V, Square, 50 mm, 10 mm, Ball Bearing, 5.95 CFM
- Supply Voltage: 5V
- Current Type: DC
- Fan Frame Size: 50mm
- External Depth: 10mm
- Noise Rating: 19dBA
- Flow Rate - Imperial: 5.95cu.ft/min
- Flow Rate - Metric: 10.1m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 50mA
- Product Range: MFB50E Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Blade Diameter: 47mm
- External Height: 50mm
- External Width: 50mm
- Fixing Centres: 42mm
- Fixing Hole Diameter: 4.2mm
- Frame Dimensions: 50mm x 50mm x 10mm
- Input Voltage Max: 5.5VDC
- Input Voltage Min: 4.5VDC
- Lead Length: 295mm
- Operating Temperature Max: 60°C
- Operating Temperature Min: -10°C
- Pressure Max: 14Pa
- Supply Voltage DC Max: 5.5V
- Supply Voltage DC Min: 4.5V
