MOSPEC - U30D40C - Fast / Ultrafast Diode, 400 V, 30 A, Dual Common Cathode, 1.3 V, 50 ns, 250 A
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 30A
- Diode Configuration: Dual Common Cathode
- Forward Voltage VF Max: 1.3V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 250A
- Operating Temperature Max: 150°C

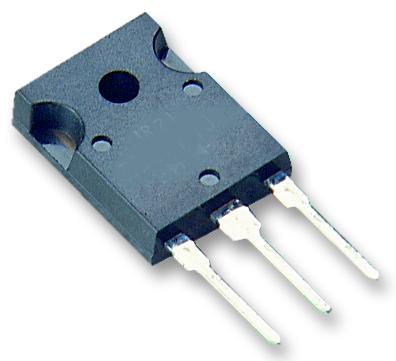

- Diode Case Style: TO-247
- No. of Pins: 3 Pin
- Product Range: U30D4 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current If @ Vf: 15A
- Current Ifsm: 250A
- Diode Type: Fast Recovery
- Forward Voltage: 1.3V
- Junction Temperature Tj Max: 150°C
- No. of Pins: 3Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Pin Configuration: A1(1), A2(3), commonK(2)
- Reverse Recovery Time trr Typ: 50ns
- Termination Type: Through Hole
