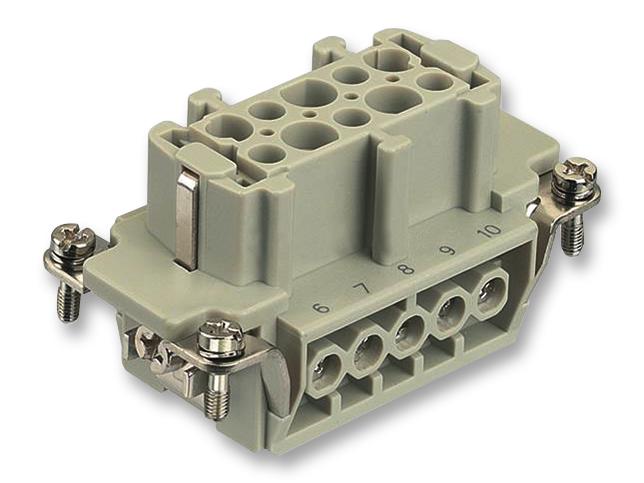

HARTING - 0933 010 2701 - Heavy Duty Connector, 10+PE Signal, Han E, Insert, 10+PE Contacts, 10B, Receptacle, Screw Socket
- Product Range: Han E Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 11 Contacts
- Rectangular Shell Size: 10B
- Gender: Receptacle
- Heavy Duty Contact Type: Screw Socket
- Current Rating: 16A
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, UL, VDE
- Connector Type: Rectangular Power
- Contact Gender: Socket
- Contact Material: Copper Alloy
- Contact Plating: Silver Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- For Use With: Han 10B Housings and Hoods
- IP / NEMA Rating: IP65
- No. of Contacts: 11Contacts
- No. of Rows: 2 Row
- No. of Rows: 2Rows
- Range: 10B
- Termination Method: Screw
- Voltage Rating: 500V
- Voltage Rating VAC: 380V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.14mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 18AWG
- Working Voltage: 380V
