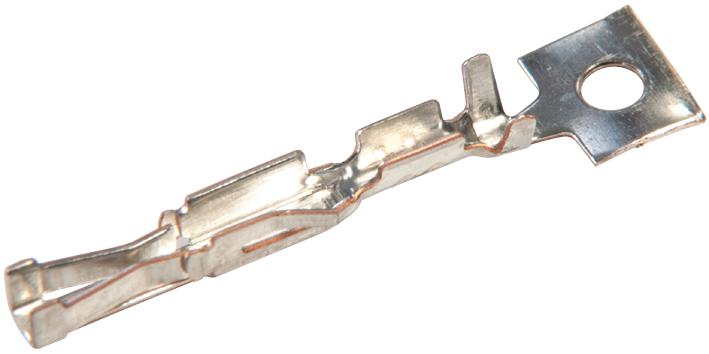

AMP - TE CONNECTIVITY - 182734-2 - Contact, AMPMODU HE14, Socket, Crimp, 24 AWG, Tin Plated Contacts, 0.1 AMPMODU Headers, Housings
- Product Range: AMPMODU HE14 Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 24AWG
- Contact Plating: Tin Plated Contacts
- For Use With: 0.1 AMPMODU Headers, Housings
- Wire Size AWG Min: 28AWG
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 1.5mm
- Cable Diameter Min: 0.8mm
- Contact Size: 24
- Contact Termination: Crimp
- Current Rating: 3A
- Gender: Receptacle
- Wire Area Size Max: 0.22mm²
- Wire Area Size Min: 0.08mm²
- Wire Size: 24AWG
- Wire Size (AWG): 28AWG to 24AWG
