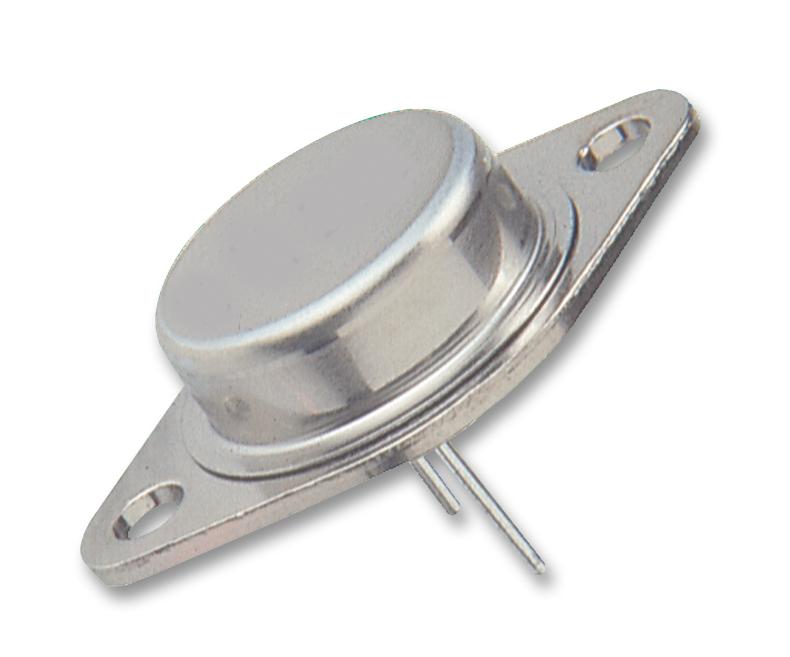

ONSEMI - 2N5684G - Bipolar (BJT) Single Transistor, General Purpose, PNP, 80 V, 50 A, 300 W, TO-204, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -80V
- Transition Frequency ft: 2MHz
- Power Dissipation Pd: 300W
- DC Collector Current: -50A
- DC Current Gain hFE: 2hFE
- Transistor Case Style: TO-204
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Product Range: 2NXXXX Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 15V
- Gain Bandwidth ft Typ: 2MHz
- Hfe Min: 60
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
