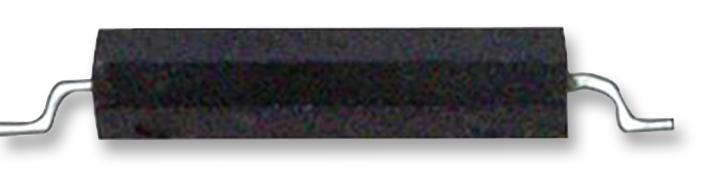

LITTELFUSE - 59170-1-S-00-C - Reed Switch, 59170 Series, Moulded, 7.5 mm, SPST-NO, 10 W, 200 Vdc, 0.5 A, 10 to 15 AT
- Sensing Range Max: 7.5mm
- Sensor Mounting: SMD
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Supply Current: 500mA
- Product Range: 59170 Series
- Contact Configuration: SPST-NO
- Contact Current Max: 800mA
- Contact Resistance Max: 0.1ohm
- Switch Mounting: SMD
- Switching Power Max: 10W
- Switching Voltage Max: 200V
