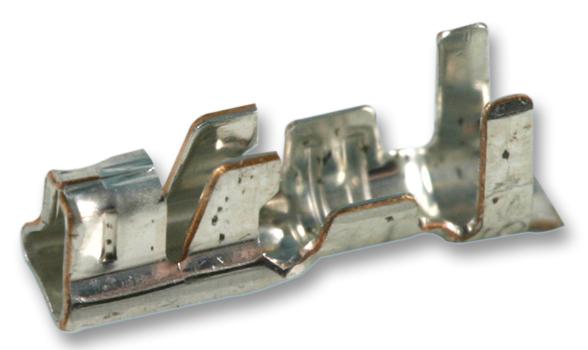

BXA-001T-P0.6 CONTACT, CRIMP, RECEPTACLE, 28-22AWG JST (JAPAN SOLDERLESS TERMINALS)
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
BXA-001T-P0.6 CONTACT, CRIMP, RECEPTACLE, 28-22AWG JST (JAPAN SOLDERLESS TERMINALS)

BXA-001T-P0.6 CONTACT, CRIMP, RECEPTACLE, 28-22AWG JST (JAPAN SOLDERLESS TERMINALS)

JST (JAPAN SOLDERLESS TERMINALS)SKU:BXA-001T-P0.6 Bestelcode:7356145
Prijs:
€0,13

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (34988 units)

Documenten en downloads

Omschrijving

JST (JAPAN SOLDERLESS TERMINALS) - BXA-001T-P0.6 - Contact, XA, Socket, Crimp, 22 AWG, Tin Plated Contacts, XA Series Housing

  • Product Range: XA Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 22AWG
  • Contact Plating: Tin Plated Contacts
  • For Use With: XA Series Housing
  • Wire Size AWG Min: 28AWG
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (27-Jun-2018)
  • Body Plating: Tin
  • Cable Diameter Max: 1.9mm
  • Cable Diameter Min: 1.2mm
  • Contact Termination: Crimp
  • External Depth: 1.9mm
  • External Length / Height: 2.3mm
  • External Width: 6.5mm
  • Insulation Diameter Max: 1.9mm
  • Insulation Diameter Min: 1.2mm
  • Wire Area Size Max: 0.33mm²
  • Wire Area Size Min: 0.08mm²
