Omschrijving

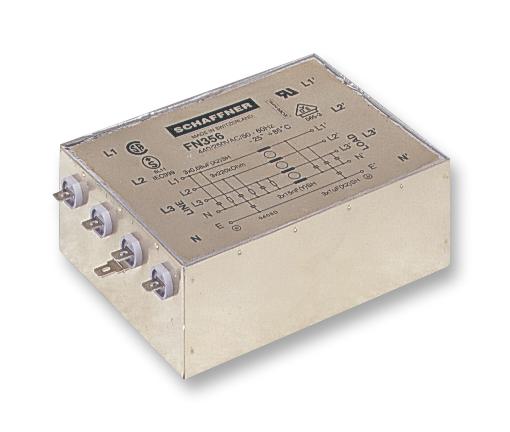

SCHAFFNER - FN356-16-06 - Power Line Filter, Installation, General Purpose, 250 VAC, 16 A, Three Phase, 1 Stage
- Current Rating: 16A
- Voltage Rating: 250V
- Filter Type: 3 Phase + Neutral Line
- Filter Terminals: Quick Connect
- Inductance Min: 1.2mH
- Capacitance: 0.68µF
- Leakage Current Max: 2.85mA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, SEV
- External Depth: 149mm
- External Length / Height: 50mm
- External Width: 104mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- RMS Current (Irms): 18.4A
- Standard: IEC950
- Supply Frequency Max: 400Hz
- Supply Frequency Min: 0Hz
- Voltage Rating VAC: 250V
- Weight: 1.6kg
