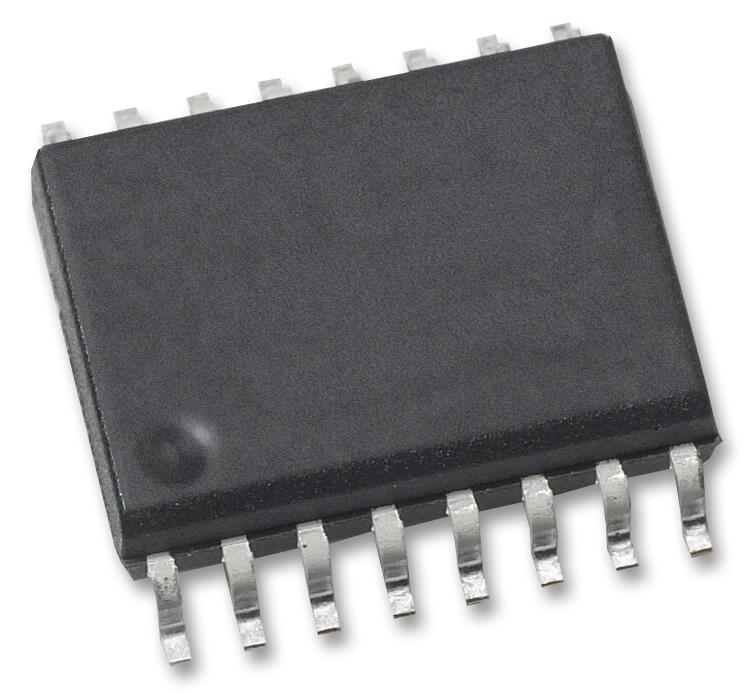

BROADCOM - HCPL-316J-000E - Optocoupler, Gate Drive Output, 1 Channel, SOIC, 16 Pins, 5 kV, HCPL-316 Family
- No. of Channels: 1 Channel
- Optocoupler Case Style: SOIC
- No. of Pins: 16Pins
- Isolation Voltage: 5kV
- Product Range: HCPL-316 Family
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CSA, UL, VDE
- CMR: 15kV/µs
- Collector Emitter Saturation Voltage Vce(on): 1200V
- Current Ic Continuous a Max: 150A
- Fall Time tf: 500ns
- Input Current: 22mA
- No. of Channels: 1Channels
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- Optocoupler Output Type: Gate Drive
- Output Voltage: 30V
- Peak Output Current: 2.5A
- Rise Time: 500ns
- Voltage Vcc Max: 30V
- Voltage Vcc Min: 15V
- Voltage Vcm: 1500V
