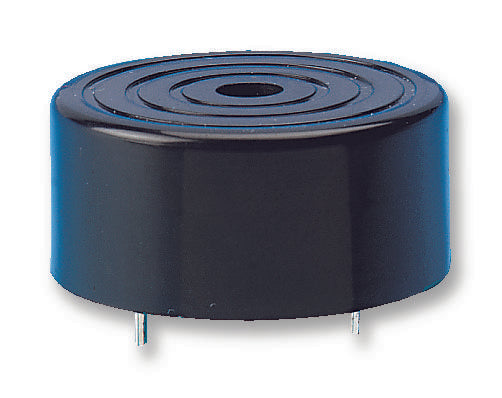

KINGSTATE - KPEG-276 - Transducer, Piezo, Buzzer, Buzzer, Continuous, 3 V, 28 V, 6 mA, 79 dB
- Transducer Function: Buzzer
- Tones: Continuous
- Supply Voltage Min: 3V
- Supply Voltage Max: 28V
- Operating Current Max: 6mA
- Sound Level SPL: 79dB
- Sound Level Distance: 30cm
- Resonant Frequency: 2.7kHz
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Colour: Black
- Current Consumption: 6mA
- Current Rating: 6mA
- Device Type: Alarm
- External Diameter: 31.5mm
- External Height: 14.4mm
- External Length / Height: 14.4mm
- Fixing Centres: 17.5mm
- Frequency: 2.7kHz
- Height: 14.4mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Pin Diameter: 1mm
- Supply Voltage: 12V
- Supply Voltage DC Max: 28V
- Supply Voltage DC Min: 3V
- Weight: 7g
