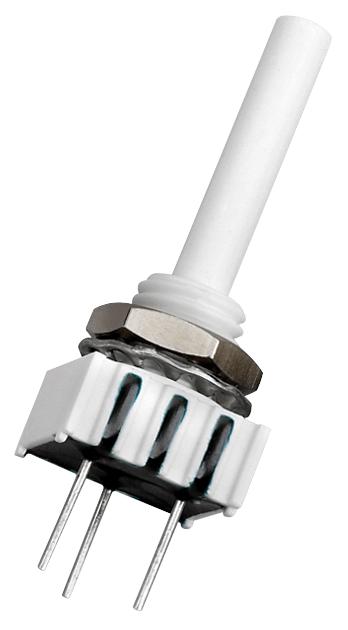

VISHAY - P10XXAI203KB30. - Rotary Potentiometer, Cermet, 20 kohm, 1 Turns, Linear, 500 mW, ± 10%, P10XX
- Track Resistance: 20kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Product Range: P10XX Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 3mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20mm
- External Depth: 9.7mm
- External Width: 9.6mm
- Lead Diameter: 0.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Element Material: Cermet
- Temperature Coefficient: ± 150ppm/°C
- Termination Type: Solder
- Voltage Rating: 100V
