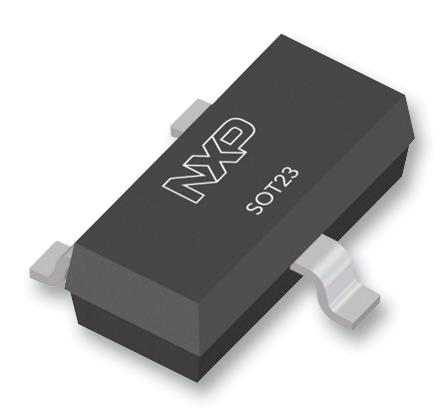

NEXPERIA - PESD24VU1UT,215 - ESD Protection Device, TVS, 76 V, SOT-23, PESD2
- Clamping Voltage Vc Max: 76V
- Diode Case Style: SOT-23
- No. of Pins: -
- Operating Voltage: -
- Power Dissipation Pd: -
- Product Range: PESD2 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage: 27.8V
- Breakover Voltage Min: 25.4V
- Capacitance Cd @ Vr Max: 1.5pF
- Capacitance Cd @ Vr Typ: 0.6pF
- Clamping Voltage @ 8/20µs Max: 76V
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Pulse Power Dissipation: 200W
- SMD Marking: AT
- Stand-off Voltage: 24V
- TVS Polarity: Bidirectional
- Termination Type: Surface Mount Device
