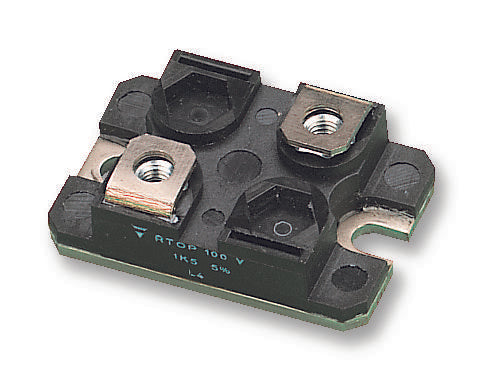

VISHAY - RTOP100V1R00JB - Resistor, 1 ohm, RTOP, 100 W, ± 5%, Screw, 1.5 kV
- Resistance: 1ohm
- Product Range: RTO Series
- Power Rating: 100W
- Resistance Tolerance: ± 5%
- Resistor Case Style: -
- Voltage Rating: 1.5kV
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 150ppm/°C
- Automotive Qualification Standard: -
- Element Limiting Voltage: 1500V
- External Depth: 12.5mm
- External Length / Height: 38mm
- External Width: 25mm
- Fixing Centres: 30mm
- Fixing Hole Diameter: 4.2mm
- Full Power Rating Temperature: 25°C
- Insulation Resistance: 1000000Mohm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Overload Capability: 2.5 x pr for 5 secs
- Power Rating with Heatsink: 100W
- Resistor Mounting: Panel
- Resistor Terminals: Screw
- Temperature Coeff. +: 150ppm/°C
- Temperature Coeff. -: 150ppm/°C
- Thermal Resistance: 1°C/W
- Tolerance +: 5%
- Tolerance -: 5%
