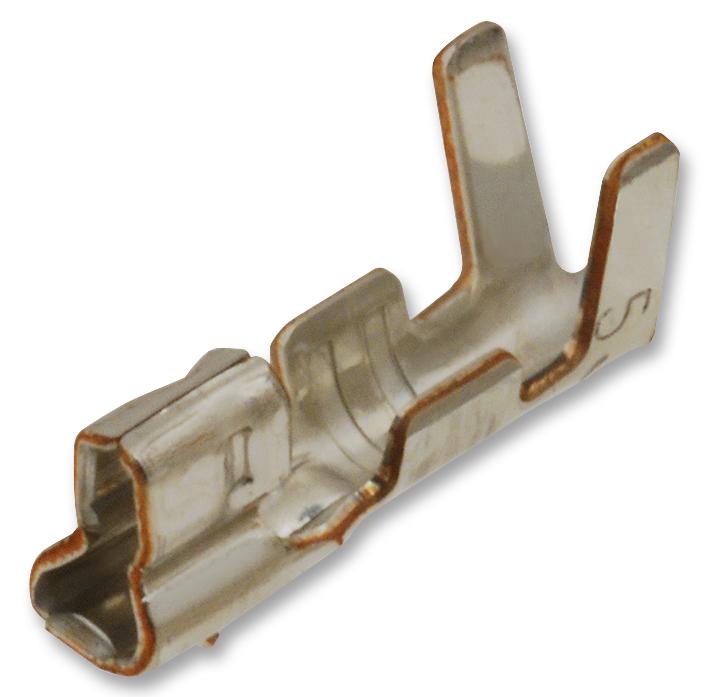

JST (JAPAN SOLDERLESS TERMINALS) - SPH-002T-P0.5S - Contact, PH, Socket, Crimp, 24 AWG, Tin Plated Contacts, PH Connectors
- Product Range: PH Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 24AWG
- Contact Plating: Tin Plated Contacts
- For Use With: PH Connectors
- Wire Size AWG Min: 30AWG
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, TUV, UL
- Cable Diameter Max: 1.5mm
- Cable Diameter Min: 0.9mm
- Contact Resistance: 10mohm
- Contact Termination: Crimp
- Current Rating: 2A
- Gender: Plug
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Wire Area Size Max: 0.22mm²
- Wire Area Size Min: 0.05mm²
- Wire Size (AWG): 30AWG to 24AWG
- Working Voltage: 100V
