Omschrijving

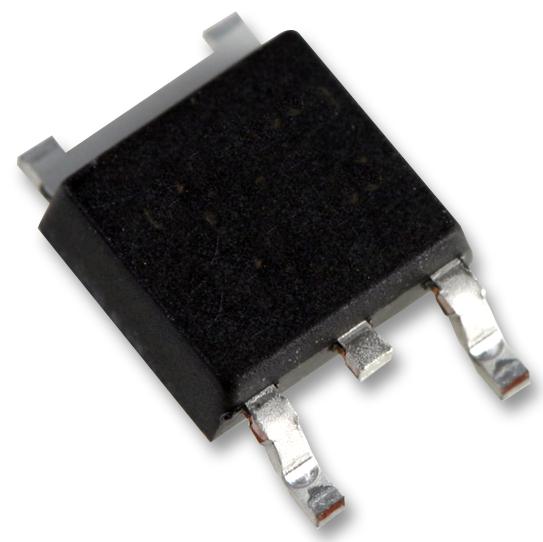

STMICROELECTRONICS - STD5N20LT4 - Power MOSFET, N Channel, 200 V, 2.5 A, 0.65 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 2.5A
- Drain Source Voltage Vds: 200V
- On Resistance Rds(on): 0.65ohm
- Rds(on) Test Voltage Vgs: 5V
- Threshold Voltage Vgs: 2.5V
- Power Dissipation Pd: 33W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 5A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 200V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 5V
