Omschrijving

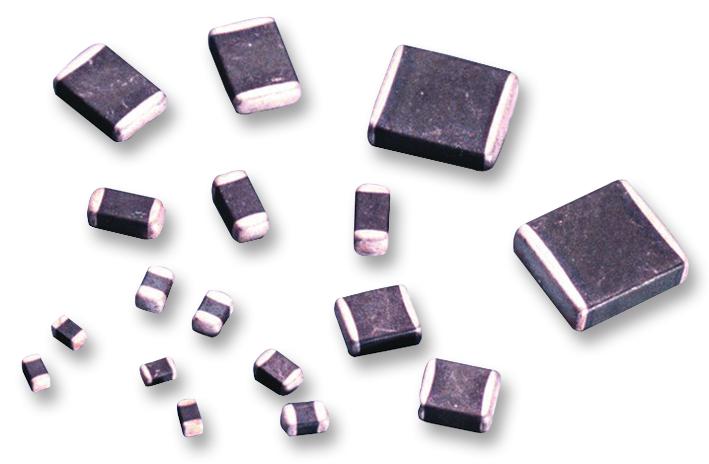

LITTELFUSE - V48MLA1210NH - TVS Varistor, 40 V, 48 V, MLA, 105 V, 1210 [3225 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 40V
- Voltage Rating V DC: 48V
- Product Range: MLA Series
- Clamping Voltage Vc Max: 105V
- Varistor Case Style: 1210 [3225 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 250A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 1.2J
- Automotive Qualification Standard: -
- Capacitance: 520pF
- Clamping Voltage: 105V
- Operating Temperature Range: -55°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 250A
- Suppressor Type: Varistor
- Surge Current: 250A
- Varistor Voltage @ 1mA: 54.5V
- Varistor Voltage @ 1mA Max: 66.5V
