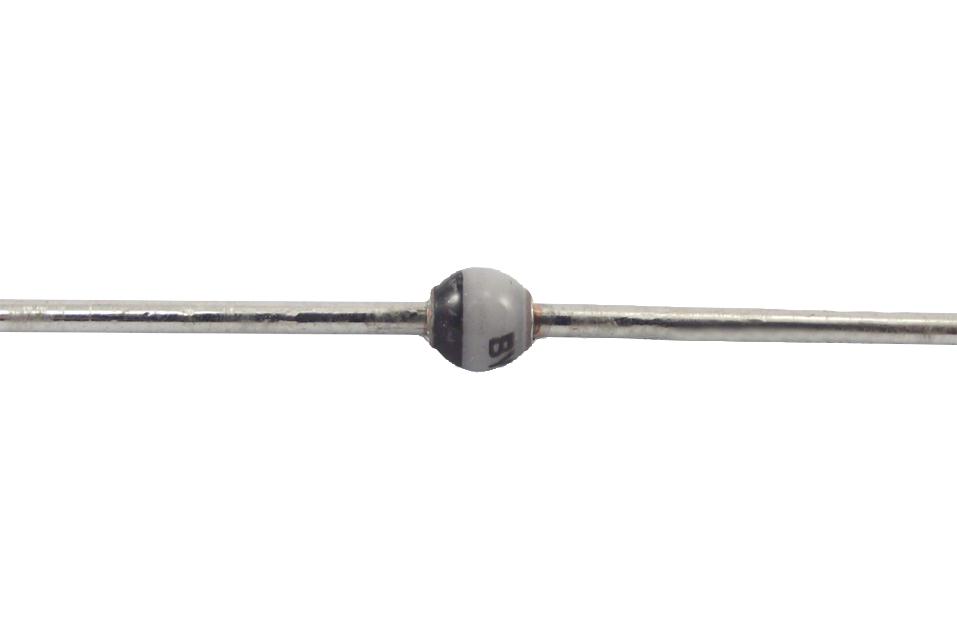

VISHAY - BYT78-TR - Standard Recovery Diode, 1 kV, 3 A, Single, 1.2 V, 250 ns, 100 A
- Repetitive Reverse Voltage Vrrm Max: 1kV
- Forward Current If(AV): 3A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.2V
- Reverse Recovery Time trr Max: 250ns
- Forward Surge Current Ifsm Max: 100A
- Operating Temperature Max: 175°C
- Diode Case Style: SOD-64
- No. of Pins: 2Pins
- Product Range: BYT78 Series
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Current Ifsm: 100A
- Diode Type: Standard Recovery
- Junction Temperature Tj Max: 175°C
- No. of Pins: 2 Pin
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Reverse Recovery Time trr Typ: 250ns
