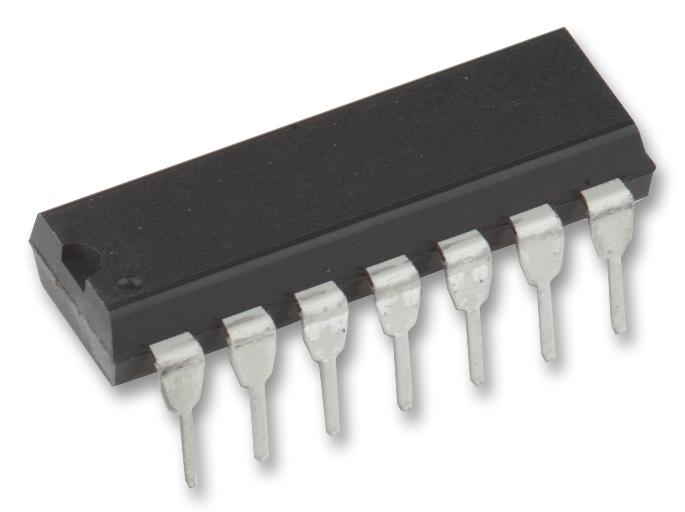

IR2110PBF Ic, MOSFET Driver, High/Low Side, Dip-14 INFINEON

INFINEONUGS :IR2110PBF Code de commande:8638837

Prix:
Prix ​​promotionnel€5,69

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1494 unité)

Documents et téléchargements

description

INFINEON - IR2110PBF - Dual Driver IC, High Side And Low Side, 10V-20V Supply, 2.5A Out, 94ns Delay, DIP-14

  • Driver Configuration: High Side and Low Side
  • Peak Output Current: 2.5A
  • Supply Voltage Min: 10V
  • Supply Voltage Max: 20V
  • Driver Case Style: DIP
  • No. of Pins: 14Pins
  • Input Delay: 120ns
  • Output Delay: 94ns
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: IR2110
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Base Number: 2110
  • Device Type: High Side, Low Side
  • Logic Function Number: 2110
  • Module Configuration: High Side, Low Side
  • No. of Outputs: 2Outputs
  • Offset Voltage: 500V
  • Operating Temperature Range: -40°C to +125°C
  • Output Voltage: 520V
  • Power Dissipation Pd: 1.6W
  • Supply Voltage Range: 10V to 20V
  • Termination Type: Through Hole
