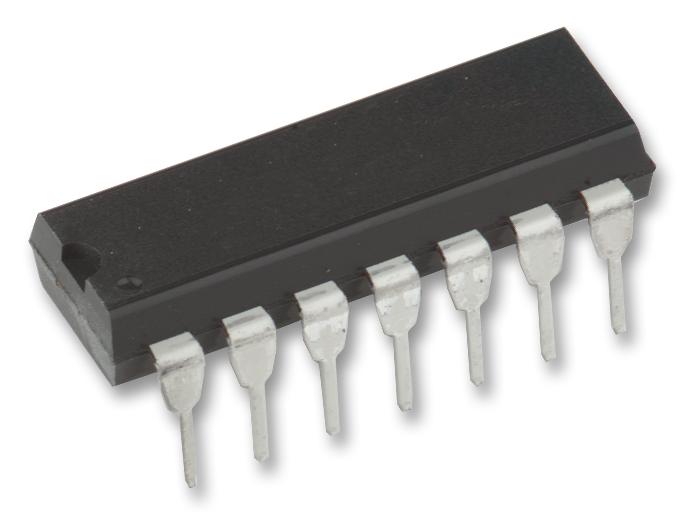

INFINEON - IRS2112PBF - MOSFET Driver, 2 outputs, High Side and Low Side, 10V-20V supply, 600 mA output, DIP-14
- Driver Configuration: High Side and Low Side
- Peak Output Current: 600mA
- Supply Voltage Min: 10V
- Supply Voltage Max: 20V
- Driver Case Style: DIP
- No. of Pins: 14Pins
- Input Delay: 135ns
- Output Delay: 105ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 2112
- Device Type: MOSFET Driver
- Module Configuration: High Side, Low Side
- No. of Outputs: 2Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Source Current Max: 290mA
- Output Voltage: 620V
- Supply Voltage Range: 10V to 20V
- Termination Type: Through Hole
