description

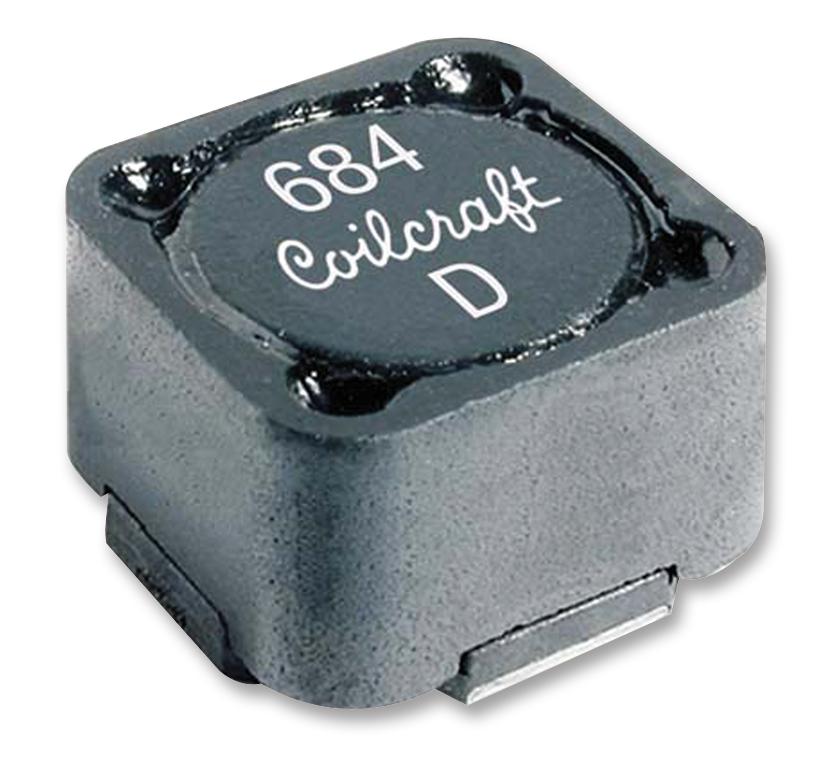

COILCRAFT - MSS1278T-104MLD - Power Inductor (SMD), 100 µH, 2.2 A, Shielded, 3.12 A, MSS1278T
- Inductance: 100µH
- RMS Current (Irms): 2.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 3.12A
- Product Range: MSS1278T Series
- Power Inductor Case: 12mm x 12mm x 7.8mm
- DC Resistance Max: 0.1502ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 4.5MHz
