description

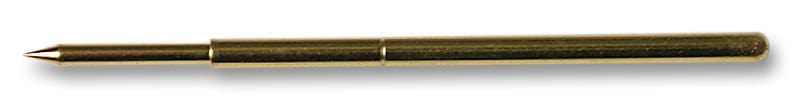

HARWIN - P13-0123 - Contact, Connector, Pointed, Spring Probe, 1.27 mm, 45° Spear, 3 A, 16.35 mm
- Connector Type: Spring Probe
- Centreline Spacing: 1.27mm
- Connector Tip Style: 45° Spear
- Current Rating: 3A
- Overall Length: 16.35mm
- Spring Force Initial: -
- Spring Force Working Travel: 120g
- Product Range: -
- SVHC: Lead (15-Jan-2019)
- Body Plating: Gold
- Contact Material: Beryllium Copper
- Contact Resistance: 30mohm
- Material: Phosphor Bronze
- No. of Mating Cycles: 1000000
- Travel: 2.65mm
