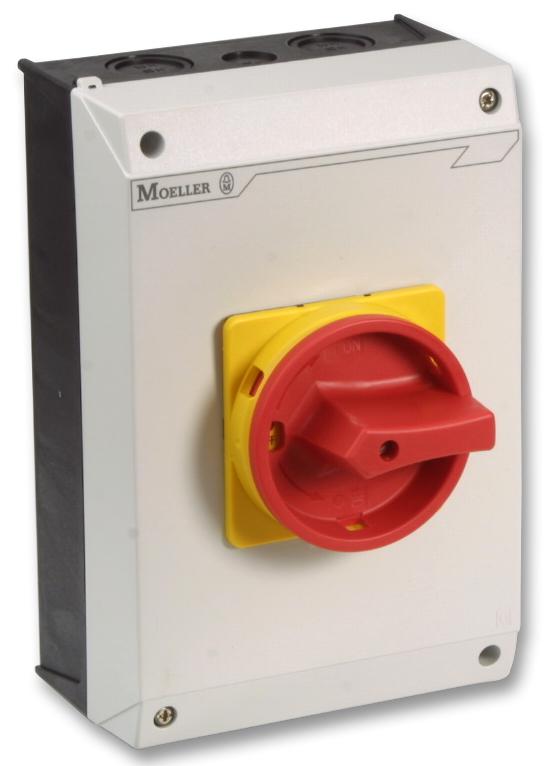

EATON MOELLER - P3-63/I4/SVB - Switch Disconnector, 3 Pole, 440 V, 63 A, IP65, Screw, Surface Mount
- No. of Poles: 3 Pole
- Contact Voltage AC Max: 440V
- Contact Current AC Max: 63A
- Approvals / Standards: CE, CSA, IEC, UL
- IP Rating: IP65
- Product Range: P3 Series
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: BS, IEC, VDE
- Current Rating: 63A
- External Depth: 95mm
- External Length / Height: 240mm
- External Width: 160mm
- Material: Thermoplastic
- No. of Mechanical Operations: 300000
- Operating Temperature Max: 50°C
- Operating Temperature Min: -25°C
- Operating Voltage: 690VAC
- Power Rating: 37kW
- Switching AC3 Power Max: 37kW
- Voltage Rating: 600VAC
